IC

Share This Page

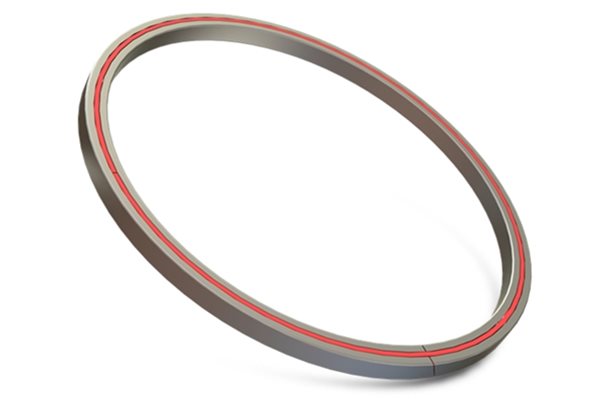

The IC split thin section bearing series has dimensions of 9.53mm x 9.53mm, and is available in a four-point (Type X) arrangement.

The standard bearing product range is available in the table below.

Please contact our team of expert bearing engineers to discuss any custom requirements.

Product Details

Part Number CAD File Shaft Size (in) d (mm) D (mm) b (mm) Speed (rpm) Mass (kg) Axial Dynamic Load Rating (kN) Axial Static Load Rating (kN) Radial Dynamic Load Rating (kN) Radial Static Load Rating (kN)
IC040XV 4 101.6 120.65 9.53 1500 0.18 9.3 37 8.5 14.7
IC042XV 4 1/4 107.95 127 9.53 1410 0.19 9.6 39.5 8.7 15.8
IC045XV 4 1/2 114.3 133.35 9.53 1340 0.2 9.7 41 8.8 16.5
IC047XV 4 3/4 120.65 139.7 9.53 1270 0.21 10 44 9 17.5
IC050XV 5 127 146.05 9.53 1200 0.22 10.1 45.5 9.1 18.2
IC055XV 5.5 139.7 158.75 9.53 1090 0.24 10.6 51 9.6 20.3
IC060XV 6 152.4 171.45 9.53 1000 0.26 10.9 55 9.8 22.1
IC065XV 6.5 165.1 184.15 9.53 920 0.28 11.2 60 10.1 23.9
IC070XV 7 177.8 196.85 9.53 860 0.3 11.5 64 10.4 25.5
IC075XV 7.5 190.5 209.55 9.53 800 0.32 11.7 68 10.6 27.5
IC080XV 8 203.2 222.25 9.53 750 0.34 12 73 10.9 29
IC085XV 8 1/2 215.9 234.95 9.53 710 0.36 12.2 77 11.1 31
IC090XV 9 228.6 247.65 9.53 670 0.38 12.5 82 11.3 32.5
IC095XV 9.5 241.3 260.35 9.53 630 0.39 12.8 87 11.6 35
IC100XV 10 254 273.05 9.53 600 0.41 13 91 11.8 36.5
IC105XV 10.5 266.7 285.75 9.53 570 0.43 13.3 96 12 38.5
IC110XV 11 279.4 298.45 9.53 550 0.45 13.5 100 12.2 4
IC115XV 11.5 292.1 311.15 9.53 520 0.47 13.7 105 12.4 42
IC120XV 12 304.8 323.85 9.53 500 0.49 13.9 109 12.6 43.5
IC130XV 13 330.2 349.25 9.53 460 0.53 14.3 118 12.9 47
IC140XV 14 355.6 374.65 9.53 430 0.56 14.7 127 13.3 51
IC150XV 15 381 400.05 9.53 400 0.6 15.1 136 13.6 54
IC160XV 16 406.4 425.45 9.53 380 0.64 15.4 145 13.9 58
IC170XV 17 431.8 450.85 9.53 350 0.68 15.7 154 14.2 62
IC180XV 18 457.2 476.25 9.53 330 0.72 16.1 163 14.5 65
IC190XV 19 482.6 501.65 9.53 320 0.76 16.4 172 14.8 69
IC200XV 20 508 527.05 9.53 300 0.79 16.7 181 15.1 72
IC210XV 21 533.4 552.45 9.53 290 0.83 17 190 15.4 76
IC220XV 22 558.8 577.85 9.53 270 0.87 17.3 199 15.6 79
IC230XV 23 584.2 603.25 9.53 3+0 0.91 17.6 208 15.9 83
IC240XV 24 609.6 628.65 9.53 250 0.95 17.9 217 16.1 87
IC250XV 25 635 654.05 9.53 240 0.98 18.1 226 16.4 90
IC260XV 26 660.4 679.45 9.53 230 1.02 18.4 235 16.6 94
IC270XV 27 685.8 704.85 9.53 220 1.06 18.7 245 16.9 98
IC280XV 28 711.2 730.25 9.53 210 1.1 18.9 255 17.1 101
IC290XV 29 736.6 755.65 9.53 210 1.14 19.1 260 17.3 105
IC300XV 30 762 781.05 9.53 200 1.18 19.3 270 17.5 108
IC310XV 31 787.4 806.45 9.53 190 1.22 19.6 280 17.7 112
IC320XV 32 812.8 831.85 9.53 190 1.26 19.8 290 17.9 116
IC330XV 33 838.2 857.25 9.53 180 1.3 20 300 18.1 119
IC340XV 34 863.6 882.65 9.53 180 1.34 20.3 305 18.5 123
