Drill Press Cutting Tool

Share This Page

Conditions

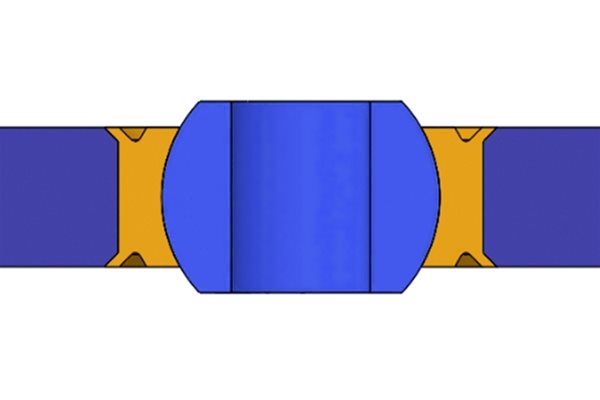

  • V-Groove or Chamfered Bearing

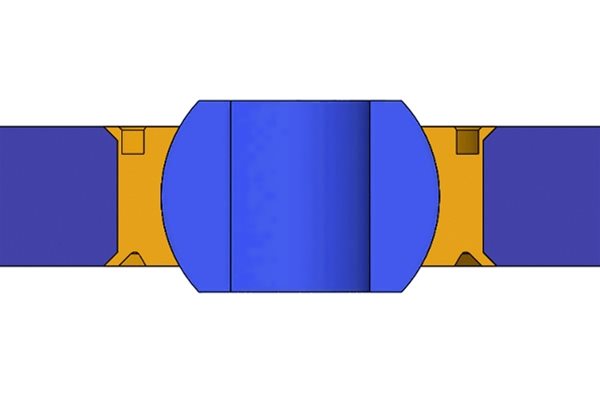

  • V-Groove or Chamfered Housing
  • Sleeve Present or Not Present

Tool Style Availability

  • Drill Press
  • Portable
  • **See our Specialist Cutters for High Temperature Bearings such as Engine Mount bearings**

Delivery Time

  • Hundreds of most popular sizes held in stock or on competitive delivery time.
  • AOG services are available upon request.

Instructional Video

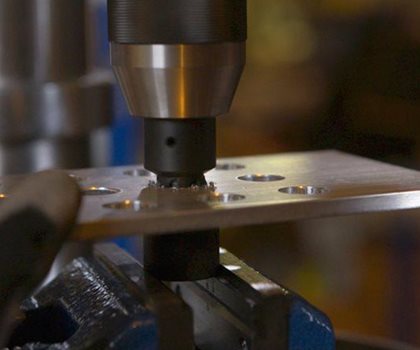

The Process

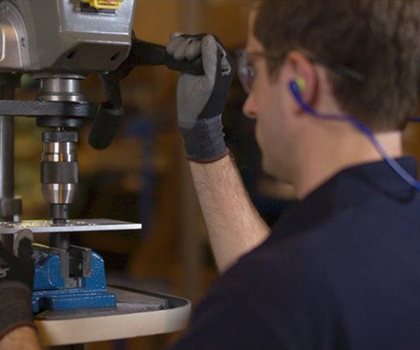

The UNASIS Drill Press Cutter Tool is used to cut the v-groove of a bearing, v-groove of a housing, or the retention sleeve. Throughout the process a cut is made on the lip to ensure it is able to be pressed out without harming damaging the housing. The UNASIS drill press cutting tool is manufactured with the outside diameter of the teeth smaller than the housing bore. This is so that it is impossible to cut the housing during the operation. Please review the UNASIS instruction manual, training video, and process control for customer audit purposes.

Advantages

Tool Longevity

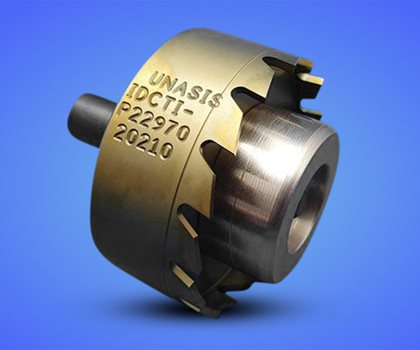

Drill Press Cutting Tools upgraded materials and heat treatment processes proven to outlast competition. UNASIS Bearings offer spare components and sharpening services to maximize your investment. The Drill Press Cutting Tool tooth profile and reliefs are designed specifically for cutting bearings and stay sharper for longer than competition.

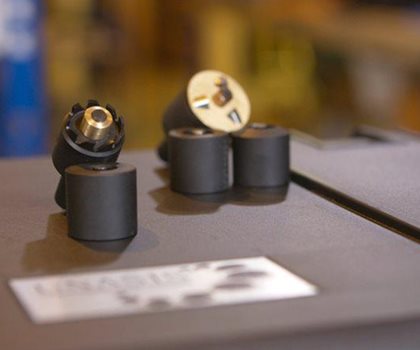

Tools in Stock

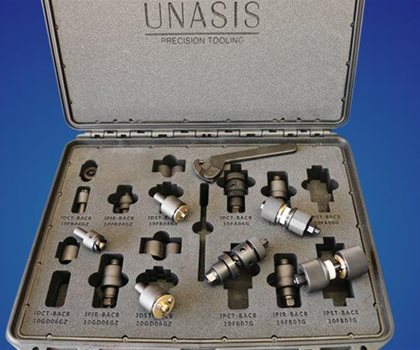

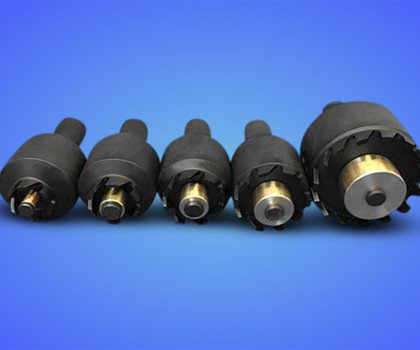

Access to hundreds of UNASIS tools from stock for the entire bearing swaging, cutting, and testing process.

Best Quality

The Drill Press Cutting Tools upgraded materials and heat treatment processes are proven to stay sharper for longer and outlast competition, in some cases more than 200%.

Upgrade Options

UNASIS have options to upgrade the cutter design for those that are cutting any specialist high-temperature steels, such as Inconel 718.

Locating Anvil

The Drill Press Cutting Tool includes a primary locating anvil on which to seat the housing. This assists in ensuring that there is accurate tool alignment and cutting.

Tool Longevity
Tools in Stock
Best Quality
Upgrade Options
Locating Anvil

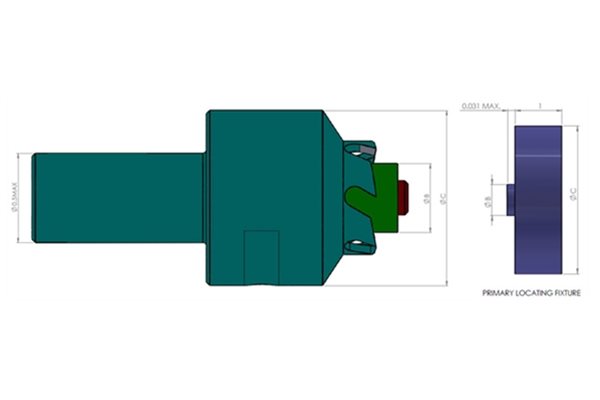

Product Details

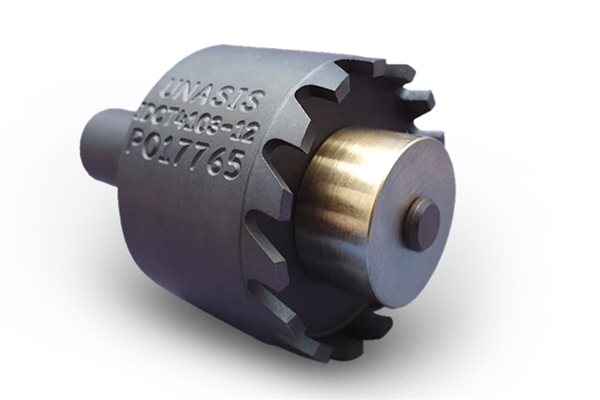

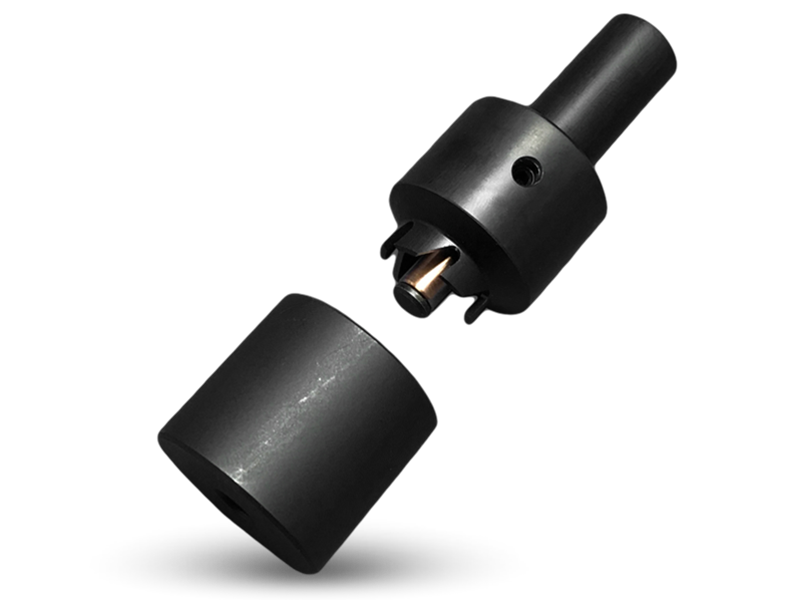

UNASIS Drill Press Cutting Tool


Rexnord Part Number

MS14101 Bearings

MS14103 Bearings

B [in]

C (ref) *  [in]

IDCT4101-3

RKC4101-3DP

MS14101-3

0.19

0.5625

IDCT4103-3

RKC4103-3DP

MS14103-3

0.19

0.625

IDCT4103-4

RKC4103-4DP

MS14103-4

0.25

0.625

IDCT4101-4

RKC4101-4DP

MS14101-4

0.25

0.6562

IDCT4103-5

RKC4103-5DP

MS14103-5

0.3125

0.6875

IDCT4101-5

RKC4101-5DP

MS14101-5A

0.3125

0.75

IDCT4101-6

RKC4101-6DP

MS14101-6



0.375

0.8125

IDCT4103-6

RKC4103-6DP



MS14103-6

0.375

0.8125

IDCT4101-7

RKC4101-7DP

MS14101-7



0.4375

0.9062

IDCT4103-7

RKC4103-7DP

MS14103-7

0.4375

0.9375

IDCT4101-8

RKC4101-8DP

MS14101-8

0.5

1

IDCT4103-8

RKC4103-8DP

MS14103-8

0.5

1

IDCT4101-9

RKC4101-9DP

MS14101-9

0.5623

1.0937

IDCT4103-9

RKC4103-9DP

MS14103-9

0.5625

1.125

IDCT4101-10

RKC4101-10DP

MS14101-10

0.625

1.1875

IDCT4103-10

RKC4103-10DP

MS14103-10

0.625

1.1875

IDCT4103-12

RKC4103-12DP

MS14103-12

0.75

1.375

IDCT4101-12

RKC4101-12DP

MS14101-12

0.75

1.4375

IDCT4101-14 RKC4101-14DP MS14101-14   0.875 2.25
IDCT4103-14 RKC4103-14DP   MS14103-14 0.875 2.25
IDCT4101-16 RKC4101-16DP MS14101-16   1 2.25
IDCT4103-16 RKC4103-116DP   MS14103-16 1 2.75

**Tools also available for BACB / EN / NAS / ABS / P2 / S302 and many others bearings**
