ZZHT200

Share This Page

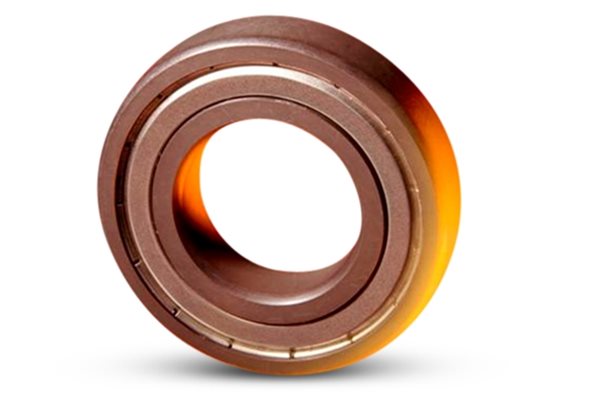

Our ZZHT200 range of high-temperature bearings are well suited for many applications beyond 150°C without a significant reduction in speed or other capabilities.



Filled with grease capable of working in temperatures between -25°C and 200°C, this range is prevalent in both the ceramic and steel industries.

Product Details

Part Number d [mm] D [mm] W [mm] Weight [g]  Speed [rpm] Static Load (kN)
6000ZZHT200 10 26 8 20 6000 1.78
6001ZZHT200 12 28 8 25 5800 2.13
6002ZZHT200 15 32 9 30 5600 2.53
6003ZZHT200 17 35 10 40 5400 2.94
6004ZZHT200 20 42 12 69 5200 4.56
6005ZZHT200 25 47 12 80 4800 5.14
6006ZZHT200 30 55 13 120 4400 7.11
6007ZZHT200 35 62 14 160 4000 9.19
6008ZZHT200 40 68 15 190 3600 10.47
6009ZZHT200 45 75 16 250 3200 12.64
6010ZZHT200 50 80 16 260 2800 13.83
6011ZZHT200 55 90 18 390 2400 18.77
6012ZZHT200 60 95 18 420 2000 20.54



Part Number d [mm] D [mm] W [mm] Weight [g]  Speed [rpm] Static Load (kN)
6200ZZHT200 10 30 9 30 5800 2.33
6201ZZHT200 12 32 10 37 5600 2.84
6202ZZHT200 15 35 11 45 5400 3.35
6203ZZHT200 17 40 12 65 5200 4.26
6204ZZHT200 20 47 14 110 4800 5.98
6205ZZHT200 25 52 15 130 4400 7.11
6206ZZHT200 30 62 16 200 4000 9.88
6207ZZHT200 35 72 17 290 3600 13.53
6208ZZHT200 40 80 18 370 3200 16
6209ZZHT200 45 85 19 410 2800 18.07
6210ZZHT200 50 90 20 460 2400 21.33
6211ZZHT200 55 100 21 610 2000 25.78
6212ZZHT200 60 110 22 780 1800 32



Part Number d [mm] D [mm] W [mm] Weight [g]  Speed [rpm] Static Load (kN)
6300ZZHT200 10 35 11 52 5600 3.14
6301ZZHT200 12 37 12 60 5400 3.75
6302ZZHT200 15 42 13 80 5200 4.87
6303ZZHT200 17 47 14 120 4800 5.88
6304ZZHT200 20 52 15 140 4400 6.39
6305ZZHT200 25 62 17 225 4000 10.07
6306ZZHT200 30 72 19 350 3600 14.42
6307ZZHT200 35 80 21 450 3200 16.89
6308ZZHT200 40 90 23 620 2800 22.22
6309ZZHT200 45 100 25 830 2400 28.45
6310ZZHT200 50 110 27 1050 2000 33.78
6311ZZHT200 55 120 29 1350 1800 42.17
6312ZZHT200 60 130 31 1700 1600 46.22
