IMCR

Share This Page

All of our cam follower and yoke roller bearings are designed, developed, and manufactured to the highest possible quality, and offer an economic solution to industry-standard principle dimensions. This makes them both readily available, and interchangeable with design improvements, meaning you can enjoy enhanced performance over an extended operating life.



Our IMCR range comes equipped with a cage that evenly spaces the needles during operation. For more information, please review the product table below and discover the ideal bearing for your application. For tailored support, please reach out to our expert team of bearing engineers today.

Product Details

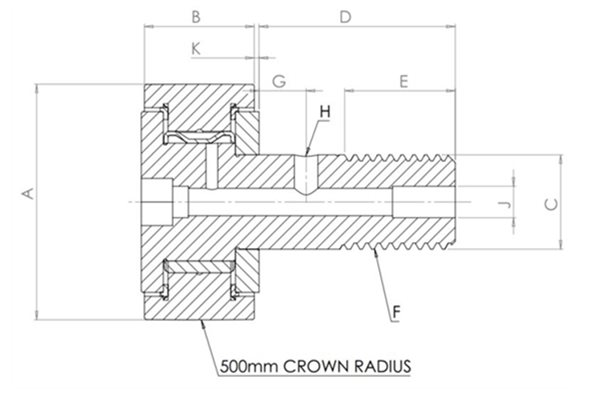

Size Sealed Bearing Part Number  A - Roller OD B - Roller Width C - Stud Dia. D - Stud Length E - Thread Length F - Thread Class G - Oil Hole Centre H - Oil Hole Dia. J - Lube   Fitting Size
mm   mm mm mm mm mm   mm mm
13 IMCR-13-SB 13 9 5 13 7.5 M5X0.8 - - 3.1
16 IMCR-16-SB 16 11 6 16 9 M6X1 - - 4
19 IMCR-19-SB 19 11 8 20 11 M8X1.25 - - 4
22 IMCR-22-SB 22 12 10 23 12 M10X1 - - 4
26 IMCR-26-SB 26 12 10 23 12 M10X1 - - 4
30 IMCR-30-SB 30 14 12 25 14 M12X1.5 6 3 6
32 IMCR-32-SB 32 14 12 25 14 M12X1.5 6 3 6
35 IMCR-35-SB 35 18 16 32.5 18 M16X1.5 8 3 6
40 IMCR-40-SB 40 20 18 36.5 19 M18X1.5 8 3 6
47 IMCR-47-SB 47 24 20 40.5 21 M20X1.5 9 4 8
52 IMCR-52-SB 52 24 20 40.5 21 M20X1.5 9 4 8
62 IMCR-62-SB 62 29 24 49.5 25 M24X1.5 11 4 8
72 IMCR-72-SB 72 29 24 49.5 25 M24X1.5 11 4 8
80 IMCR-80-SB 80 35 30 63 32 M30X1.5 15 4 8
85 IMCR-85-SB 85 35 30 63 32 M30X1.5 15 4 8
90 IMCR-90-SB 90 35 30 63 32 M30X1.5 15 4 8

*The standard UNASIS metric cam-follower comes with hexagonal head with hex-port, seals and crowned outer roller diameter.
*Cylindrical roller surface is available, include and "X" suffix in the part number e.g. IMCR-62-X, IMCR-62-SX, IMCR-62-SBX, please refer to the part numbering section.



Size Sealed Bearing Part Number  Corner  Radius Clamping Dia. Min Clamping Torque Max Speed -Grease Speed - Oil Dynamic Load Rating Static Load Rating Mass
mm   mm mm Nm rpm rpm N N kg
13 IMCR-13-SB 0.3 9 2.2 20000 30000 2450 2260 0.01
16 IMCR-16-SB 0.3 11 3 19500 25000 4120 4120 0.018
19 IMCR-19-SB 0.3 13 8 15500 20000 4510 5000 0.028
22 IMCR-22-SB 0.5 15 15 13500 17500 6280 7260 0.043
26 IMCR-26-SB 0.5 15 15 13500 17500 6280 7260 0.055
30 IMCR-30-SB 1 19 22 9600 12500 8240 9710 0.087
32 IMCR-32-SB 1 19 22 9600 12500 8240 9710 0.096
35 IMCR-35-SB 1 24 57 6300 8000 13040 19030 0.166
40 IMCR-40-SB 6 27 85 5000 6400 15990 23730 0.245
47 IMCR-47-SB 8 30 118 3900 5000 21280 35700 0.387
52 IMCR-52-SB 8 30 118 3900 5000 21280 35700 0.453
62 IMCR-62-SB 8 38 216 3100 4100 31680 55700 0.801
72 IMCR-72-SB 8 38 216 3100 4100 31680 55700 1.039
80 IMCR-80-SB 8 51 441 2200 2900 56000 105030 1.621
85 IMCR-85-SB 8 51 441 2200 2900 56000 105030 1.793
90 IMCR-90-SB 8 51 441 2200 2900 56000 105030 1.981

*Limiting Speeds shown in the table above should be used as a guideline only as each individual application and load scenario will vary. The figures given assume bearings operating within optimal conditions only.
*Clamping torque is based on dry threads only. If the threads are lubricated, use half the values shown.
